Подскажите в чем разница этого мастера громкости от варианта ТС?

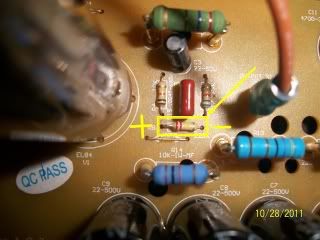

Here is the resistor you remove. Pretty easy once the board is out..
I ran a wire from the + side to the lead and wiper tabs on my 100k pot.. Yep 100k, but I put a resistor accross from lead to ground and it outside (lead to ground ohms out at 260k) then I can go from 260 down to zero with the wiper testing it..
So I put it in.. I actually made the pot easy to replace... I have a quick connect between the boad and pot.. This way I don't have to pull the board if I want to replace or try a 500k pot..
STANDBY
Here is the Standby switch (works perfectly) thanks Twang your pictures helped with this one.
... и добавил:В общем в какой то из зеленых проводов нужно тумблер вставить
